Static Particle Pixellisation (3D)

import numpy as np
import konigcell as kc

# Generate a short trajectory to pixellise
positions = np.array([
    [0.1, 0.3, 0.2],
    [0.2, 0.2, 0.8],
    [0.1, 0.3, 0.55],
    [0.2, 0.6, 0.8],
    [0.1, 0.3, 0.45],
    [0.2, 0.6, 0.2],
])

radii = np.array([0.05, 0.03, 0.01, 0.02, 0.02, 0.03])
values = np.array([1, 2, 1, 1, 2, 1])

# Pixellise the moving particle
voxels = kc.static3d(
    positions,
    kc.ONE,
    radii = radii,
    values = values,
    resolution = (100, 100, 100),
)

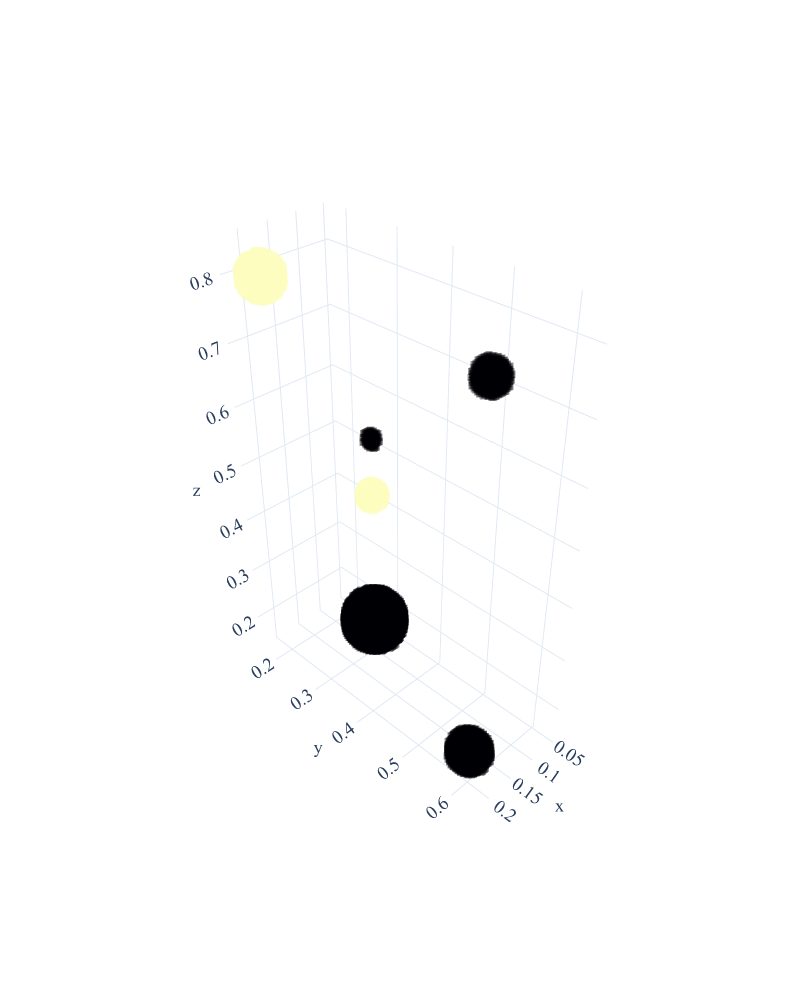

# Show a Plotly heatmap of the pixels
fig = kc.create_fig()
fig.add_trace(voxels.scatter_trace())
fig.show()
